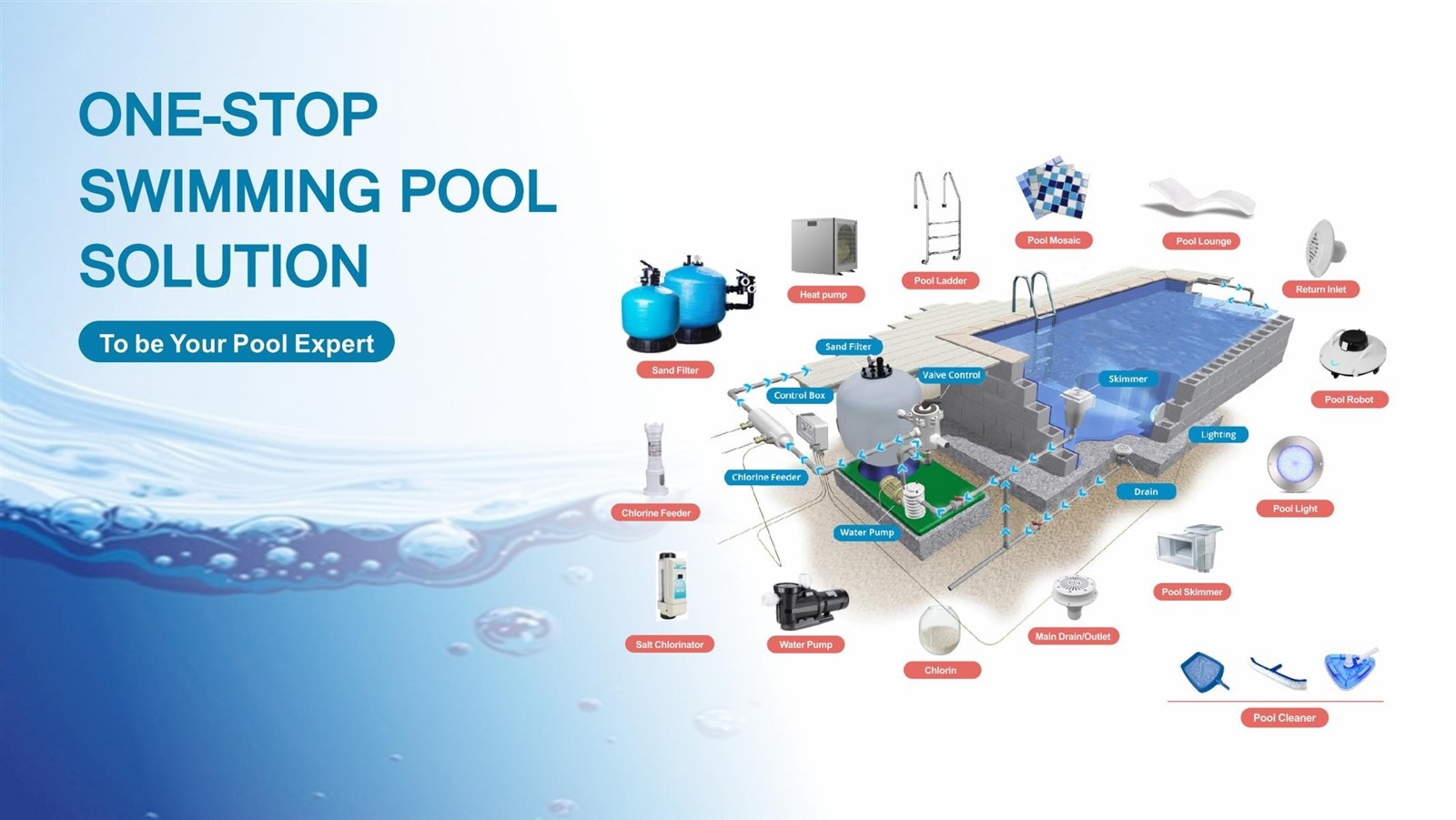

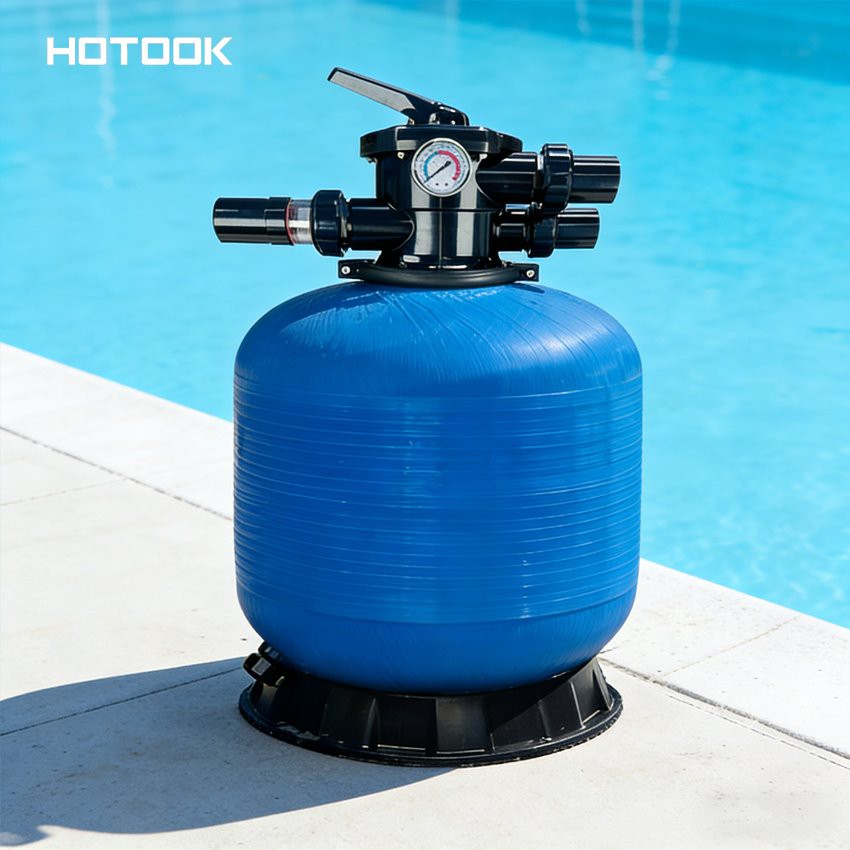

HOTOOK launches Bobbin Fiberglass Top Mounted Sand Filter. We have been committed to one-stop swimming pools for many years, covering most of the European, American and Middle Eastern markets. We look forward to becoming your long-term partner in China.

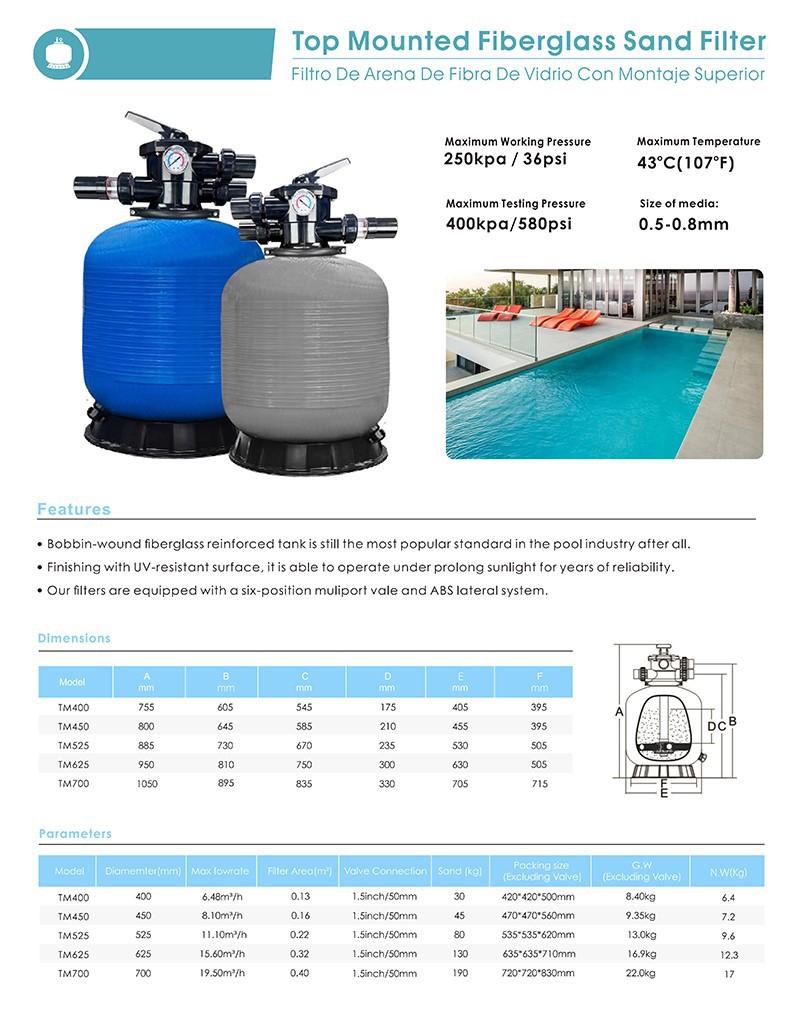

Product Parameter (Specification)
|
Model |
Sand filter diameter |
The main material |
Max fow |
Filter Area |
Connection Size |
Body Color |
|
TM400 |
16"(400mm) |
Glass fiber + resin |
6.48 |
0.13 |
1.5"(50mm) |
Blue or Grey |
|
TM450 |
18"(450mm) |
Glass fiber + resin |
8.10 |
0.16 |
1.5"(50mm) |
Blue or Grey |
|
TM525 |
21"(525mm) |
Glass fiber + resin |
11.10 |
0.22 |
1.5"(50mm) |
Blue or Grey |
|
TM625 |
25"(625mm) |
Glass fiber + resin |
15.60 |
0.32 |
1.5"(50mm) |
Blue or Grey |
|
TM700 |
28"(700mm) |
Glass fiber + resin |
19.50 |
0.40 |
1.5"(50mm) |
Blue or Grey |
|
TM700B |
28"(700mm) |
Glass fiber + resin |
20.16 |
0.41 |
2" (63mm) |
Blue or Grey |
|
TM750 |
30"(750mm) |
Glass fiber + resin |
22.00 |
0.44 |
2" (63mm) |
Blue or Grey |
|
TM800 |
32"(800mm) |
Glass fiber + resin |
24.90 |
0.50 |
2" (63mm) |
Blue or Grey |
|
TM900 |
36"(900mm) |
Glass fiber + resin |
31.20 |
0.64 |
2" (63mm) |
Blue or Grey |
|
TM1000 |
40"(1000mm) |
Glass fiber + resin |
39.00 |
0.79 |
2" (63mm) |
Blue or Grey |
|
TM1100 |
40"(1100mm) |
Glass fiber + resin |
/ |
/ |
2" (63mm) |
Blue or Grey |
|
TM1200 |
48"(1200mm) |
Glass fiber + resin |
51.60 |
1.13 |
2" (63mm) |
Blue or Grey |
|
TM1400 |
56"(1400mm) |
Glass fiber + resin |
69.30 |
1.54 |
2" (63mm) |
Blue or Grey |
Product Feature
Top-mounted valve for easy operation: The valve is mounted on the top, allowing for direct operation of backflushing and sewage discharge while standing, without the need for bending over.

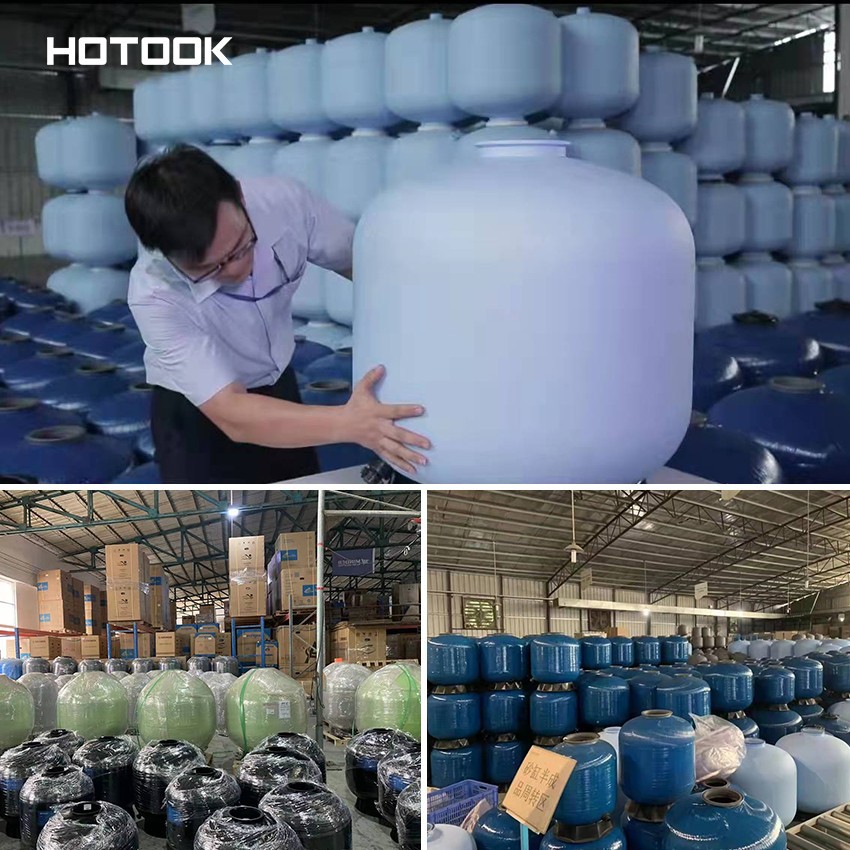

Durable fiberglass tank: The winding process is a classic in the swimming pool industry, making it impact-resistant, crack-resistant, and reliable for years to come.
Sun-resistant and non-aging: The surface has an anti-UV coating, ensuring its appearance and performance remain consistent even when exposed to direct sunlight.
Pressure-resistant and fluctuation-resistant: It can withstand working pressure up to 250kPa, unaffected by temporary water pressure changes, and adaptable to various water supply environments.

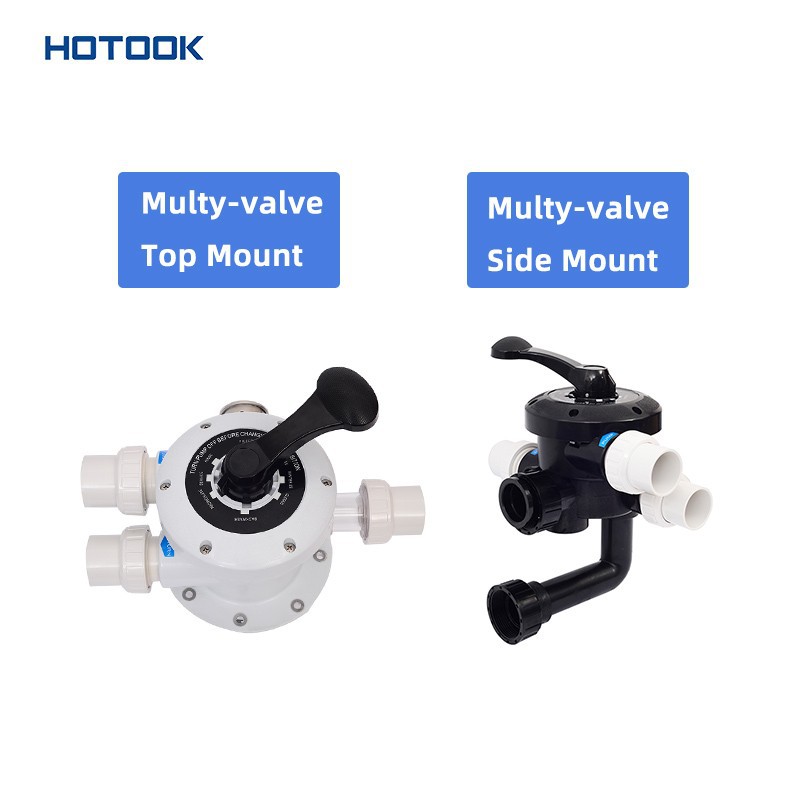

6-position valve with comprehensive functions: One valve integrates 6 commonly used modes, eliminating the need for additional parts replacements, allowing even beginners to quickly learn how to use it.
ABS distributor prevents clogging: The water distribution system provides even water flow, preventing filter sand from clumping and ensuring more thorough rinsing.
Small size for flexible adaptation: A minimum diameter of 400mm can cover a flow rate of 4.68m³/h, suitable even for small swimming pools.
Low filter media cost: 0.5-0.8mm ordinary quartz sand is sufficient, eliminating the need to purchase expensive specialized filter media and saving money in the long run.
Standardized interfaces for easy connection: All interfaces are 1.5-inch, eliminating the need for pipe diameter changers on-site and saving labor time during installation.
Lightweight and easy to maintain: Weighing as little as 6.4kg, it can be easily moved by one person when changing sand or cleaning, without needing assistance.
FAQ
Q: How often should the filter be backwashed?
A: Backwashing is recommended when pressure increases by 0.8–1.0 bar.
Q: How frequently should the filter media be replaced?
A: Quartz sand typically every 2–3 years; glass media lasts longer.
Q: Does the filter require regular maintenance?
A: Only routine backwashing and periodic inspections are needed.
Q: Is the tank resistant to chemical corrosion?
A: Yes. Fiberglass material offers excellent chemical resistance.
Q: What safety precautions should be followed?
A: Always release pressure before servicing and operate within rated limits.
Q: Can the filter withstand long-term outdoor use?
A: Yes. UV-resistant coating ensures long service life outdoors.
Q: How should the filter be maintained during winter shutdown?
A: Drain all water and keep the filter dry to prevent freezing damage.
Q: Are replacement parts easily available?
A: Yes. Valves, laterals, and accessories are readily available.
Q: What certifications can this filter comply with?
A: CE, ISO, and other international standards can be supported.
Q: What is the typical warranty period?
A: Warranty terms vary but usually cover manufacturing and structural defects.
