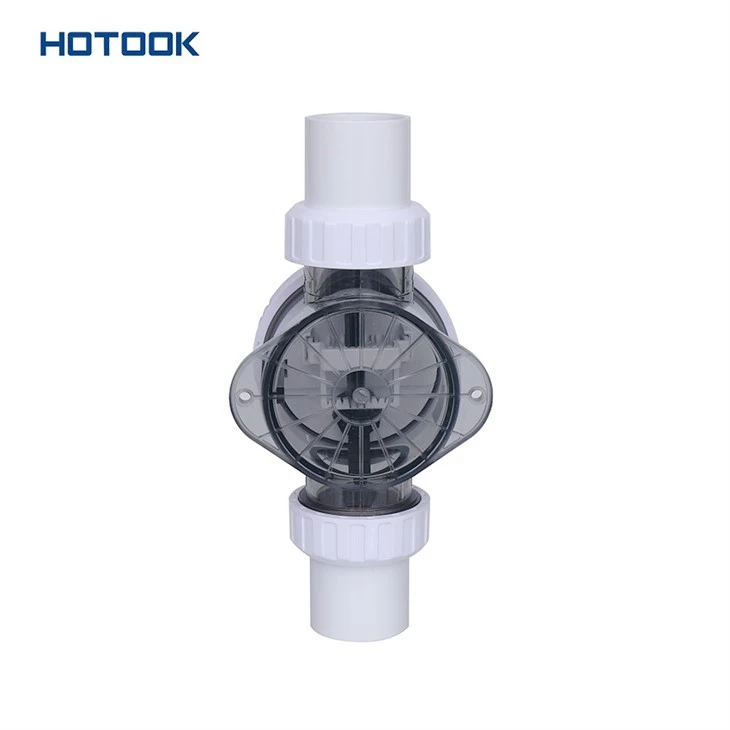

SCS Pool Salt Chlorinator
The HOTOOK SCS Series is a compact salt water chlorinator designed to generate chlorine through salt electrolysis. Instead of adding chlorine manually throughout the day, the system produces chlorine while the pool circulation system is running.
Chlorine output can be adjusted according to pool size and operating requirements. The SCS Series also includes automatic electrode self cleaning, low-salt protection, water temperature monitoring and multiple operating protections for more reliable daily use.
With models from 2 g/h to 10 g/h, the SCS Series is suitable for pools and spas up to approximately 45 m³.
Key Features
2-10 g/h chlorine output : Five models are available for different pool volumes and chlorine demand.
Adjustable chlorine production : Four output levels allow the system to match different operating requirements.
Titanium electrode cell : The detachable electrode design makes inspection, cleaning and maintenance easier.
Automatic self cleaning : Helps reduce mineral buildup on the electrode and supports stable chlorine production.
Low salt protection : An alarm is triggered when the salt concentration is too low for effective operation.
Water temperature monitoring : The system monitors water temperature and provides an alarm when the temperature is outside the specified 10-45°C operating range.
Built in protection : Includes water flow, overload, high temperature and electrode short circuit protection.
110-240V input : AC 110-240V, 50/60Hz input makes the system suitable for different international markets.
Compact installation : The integrated control and generator design saves installation space.
Products Description
| Model | Chlorine Output | Recommended Pool Volume | Salt Concentration | Input Voltage | Output Voltage |
|---|---|---|---|---|---|
| SCS2 | 2 g/h | ≤10 m³ / 2,650 gal | 1,000–3,500 ppm | AC 110–240V, 50/60Hz | DC 24V |
| SCS4 | 4 g/h | 10–18 m³ / 2,650–4,800 gal | 1,000–3,500 ppm | AC 110–240V, 50/60Hz | DC 24V |
| SCS6 | 6 g/h | 13–27 m³ / 3,450–7,150 gal | 1,000–3,500 ppm | AC 110–240V, 50/60Hz | DC 24V |
| SCS8 | 8 g/h | 18–35 m³ / 4,800–9,250 gal | 1,000–3,500 ppm | AC 110–240V, 50/60Hz | DC 24V |
| SCS10 | 10 g/h | 23–45 m³ / 6,100–12,000 gal | 1,000–3,500 ppm | AC 110–240V, 50/60Hz | DC 24V |
*Confirm the final salt concentration requirement with HOTOOK before installation.
How Does a Pool Salt Chlorinator Work?
The SCS Series uses salt electrolysis to produce chlorine directly in the pool circulation system.
Add pool salt
Salt is added to the pool water according to the required concentration.
Water passes through the cell
During filtration, salt water flows through the titanium electrode cell.
Electrolysis produces chlorine
The electrode converts dissolved salt into chlorine for pool sanitation.
Chlorine circulates through the pool
The generated chlorine is distributed through the circulation system to help maintain clean pool water.
The process repeats during operation
Chlorine production follows the selected output level and filtration schedule.
Product Details
Integrated Control Design
The control panel and chlorine generator are integrated into one compact unit to simplify installation and reduce equipment footprint.
Titanium Electrode Cell
The detachable titanium electrode structure allows easier inspection and routine cleaning.
Water Inlet and Outlet
The inlet and outlet are arranged on the same axis to help maintain efficient water flow through the cell.
Protection System
The SCS Series includes water-flow, overload, high-temperature and electrode short-circuit protection.
Who Is This For?
The SCS Pool Salt Chlorinator is suitable for:
Pool equipment distributors
Swimming pool contractors
Pool maintenance companies
Residential pool projects
Small commercial pools
Pool equipment wholesalers
OEM/ODM pool equipment projects
intenance
Routine maintenance for the SCS Series is straightforward:
Check pool water chemistry regularly.
Keep the salt concentration within the specified range.
Inspect the titanium electrode when required.
Use the automatic self cleaning function to reduce mineral buildup.
Keep the water circulation system operating according to the recommended filtration schedule.
Follow the installation and maintenance instructions supplied with the selected model.
Actual maintenance frequency depends on water quality, pool usage, water temperature and operating conditions.
What Should You Confirm Before Ordering?
For a pool salt chlorinator project, we recommend confirming:
Pool volume and expected bather load
Required chlorine output
Salt concentration
Local input voltage and frequency
Pool circulation and filtration system
Installation space and pipe connection requirements
OEM, packaging or branding requirements
Target quantity and delivery market
Send your pool size and project requirements to HOTOOK, and our sales team can recommend the appropriate SCS model.
FAQ
What size pool can the SCS Salt Chlorinator handle?
The SCS range covers pools from up to 10 m³ to approximately 45 m³, depending on the model. SCS2 is rated for up to 10 m³, while SCS10 is rated for 23-45 m³.
How much chlorine does the SCS Series produce?
The available models produce 2, 4, 6, 8 or 10 g/h of chlorine.
Can I adjust the chlorine output?
Yes. The SCS Series provides adjustable chlorine production to match different pool operating requirements.
What salt concentration does the SCS Series require?
The product specification currently lists 1,000–3,500 ppm. Please confirm the final required salt level for your selected model before installation.
Does the salt chlorinator clean the electrode automatically?
Yes. The SCS Series includes an automatic self-cleaning function designed to reduce buildup on the titanium electrode.
Does water temperature affect chlorine production?
Yes. The system monitors water temperature, with an alarm when the temperature is outside the specified 10–45°C range. Low water temperatures can also reduce chlorine production.
Can it be used for different countries?
The SCS Series supports AC 110–240V, 50/60Hz input, making it suitable for many international markets. Local electrical and installation requirements should still be checked before use.
Does a salt chlorinator eliminate the need for chlorine completely?
No. A salt chlorinator generates chlorine from salt, but the pool still needs regular water testing and chemical balance management.
Can I order samples before a bulk order?
Yes. HOTOOK supports sample evaluation for qualified customers. Contact the sales team for current sample availability and lead time.
Does HOTOOK provide OEM or ODM service?
Yes. HOTOOK provides OEM and ODM support for qualified pool equipment projects. Custom requirements such as branding, packaging and product specifications should be confirmed with the HOTOOK sales team.
