Shenzhen HOTOOK Industrial Co., Ltd. is one of the leading manufacturers and suppliers of multi color led pool light in China, also supports customized service. Welcome to buy discount multi color led pool light for sale here from our factory. If you have any enquiry about quotation and free sample, please feel free to email us.
Key Features & Advantages

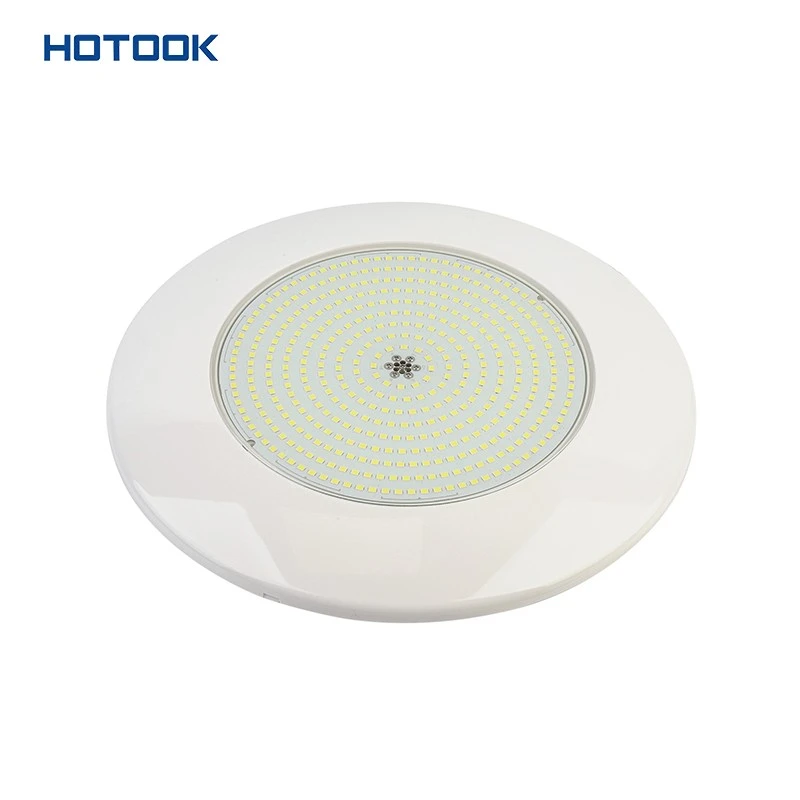

[Multi Color Changing System (WW / CW / RGB)] Our Multi Color LED Pool Light offers three versatile options: warm white, cool white, and full RGB color-changing modes. Whether you need soft ambient lighting for a luxury villa or dynamic color sequences for a hotel pool or spa, this underwater LED light adapts instantly.
[ Full Resin Filled Construction – 100% Waterproof (IP68) ]Every Multi Color LED Pool Light is completely resin-filled, achieving true IP68 protection for continuous underwater use. This proven process delivers one of the lowest waterproof failure rates in the industry, ensuring long-term reliability even in demanding permanent immersion environments.
[Nicheless Wall-Mounted Design] No niche or pre-embedded housing required. The Multi Color LED Pool Light mounts directly onto the concrete pool wall, making it perfect for both new construction and renovation projects. Installation is faster, cleaner, and more cost-effective than traditional recessed systems.
[Two Size Options for Different Budgets & Wall Thicknesses]
Big Size: Ø260 mm, thickness 17 mm – higher power output for larger pools and stronger illumination.
Small Size: Ø160 mm, thickness 18 mm – compact, economical choice for smaller pools or tighter budgets.
This flexibility allows you to match the Multi Color LED Pool Light precisely to pool size, wall thickness, and project budget.
[High Color Rendering Index (CRI > 80)] Colors appear natural and true-to-life. The high CRI ensures accurate reproduction of water tones and smooth RGB transitions, enhancing the visual appeal of blue, green, and purple lighting effects.
[Wide Voltage Compatibility – AC/DC 12 V / 24 V] Compatible with both 12 V and 24 V systems, the Multi Color LED Pool Light works with standard transformers used worldwide. This reduces the need for custom power supplies and simplifies procurement for international projects.
Specification Tables
Big Size Models
| Model | Power | Voltage | LED Type | Beam Angle | Lumen | Material | CRI | PF | Color |
|---|---|---|---|---|---|---|---|---|---|
| HTSM252P4T | 18 W | AC/DC 12/24 V | SMD2835 | 120° | 100 lm/W | PC | >80 | 0.9 | WW/CW/RGB |
| HTSM333P4T | 24 W | AC/DC 12/24 V | SMD2835 | 120° | 100 lm/W | PC | >80 | 0.9 | WW/CW/RGB |
| HTSM441P4T | 35 W | AC/DC 12/24 V | SMD2835 | 120° | 100 lm/W | PC | >80 | 0.9 |
WW/CW/RGB |
Small Size Model
| Model | Power | Voltage | LED Type | Beam Angle | Lumen | Material | CRI | PF | Color |
|---|---|---|---|---|---|---|---|---|---|
| HTSM171P4 | 15 W | AC/DC 12/24 V | SMD2835 | 120° | 100 lm/W | PC | >80 | 0.9 | WW/CW/RGB |
Quality Control & Reliability
We maintain strict quality standards throughout production to ensure every Multi Color LED Pool Light performs reliably:
Incoming Material Inspection: PC housing and resin sealing compounds undergo weather-resistance and flame-retardant testing before production.
Process Control: After SMD2835 LED soldering, units undergo 48–72 hour continuous aging tests under powered conditions.
Finished Product Testing: – IP68 waterproof immersion testing (depth and duration verified) – High/low temperature cycling – Dual-voltage stability testing (12 V / 24 V switching)
Pre-Shipment Inspection: Sampling performed according to AQL standards. Test reports accompany every shipment.
Certifications: CE, RoHS, SAA (and additional market-specific certifications available upon request for target regions).
Installation & Usage Guide
(Wall-mounted installation for concrete pools)
Preparation Confirm concrete wall thickness and ensure a suitable cable entry hole is prepared.
Installation Steps
Secure the mounting ring firmly to the concrete pool wall.
Connect the wiring, insert the Multi Color LED Pool Light body into the mounting ring, and rotate clockwise to lock.
Finish the edge with mosaic or tile for a clean, seamless appearance.
Operation Color modes (including RGB sequences) are typically switched by power cycling. Detailed instructions are provided with each unit.
Maintenance Tips
Clean the light surface regularly with non-abrasive materials.
Avoid direct contact with harsh pool chemicals.
Periodically inspect the sealing area.
Installation videos and downloadable manuals are available to support smooth on-site work and reduce installation time.
Frequently Asked Questions
1. Is the Multi Color LED Pool Light suitable for saltwater pools? Yes. The full resin-filled IP68 construction provides excellent corrosion resistance for both freshwater and saltwater environments when properly installed and maintained.
2. What is the difference between nicheless and traditional recessed pool lights? Nicheless design mounts directly on the concrete wall without a pre-embedded niche or housing. This simplifies installation, reduces costs, and works equally well for new builds and renovations. Traditional lights require a niche, adding complexity and expense.
3. How do I choose between Big Size and Small Size? Big Size (Ø260 mm) delivers higher power and is ideal for larger pools or stronger lighting needs. Small Size (Ø160 mm) is more compact and cost-effective for smaller pools or limited budgets. Consider pool surface area, desired brightness, and wall thickness.
