Shenzhen HOTOOK Industrial Co., Ltd. is one of the leading manufacturers and suppliers of modern pool lighting in China, also supports customized service. Welcome to buy discount modern pool lighting for sale here from our factory. If you have any enquiry about quotation and free sample, please feel free to email us.
[100% Resin Filled + IP68 Waterproof] ：Light body is completely filled with high-quality resin. This eliminates the most common failure point of traditional pool lights,water ingress through seals or gaskets. The result is true IP68 performance that stays waterproof for the full service life.

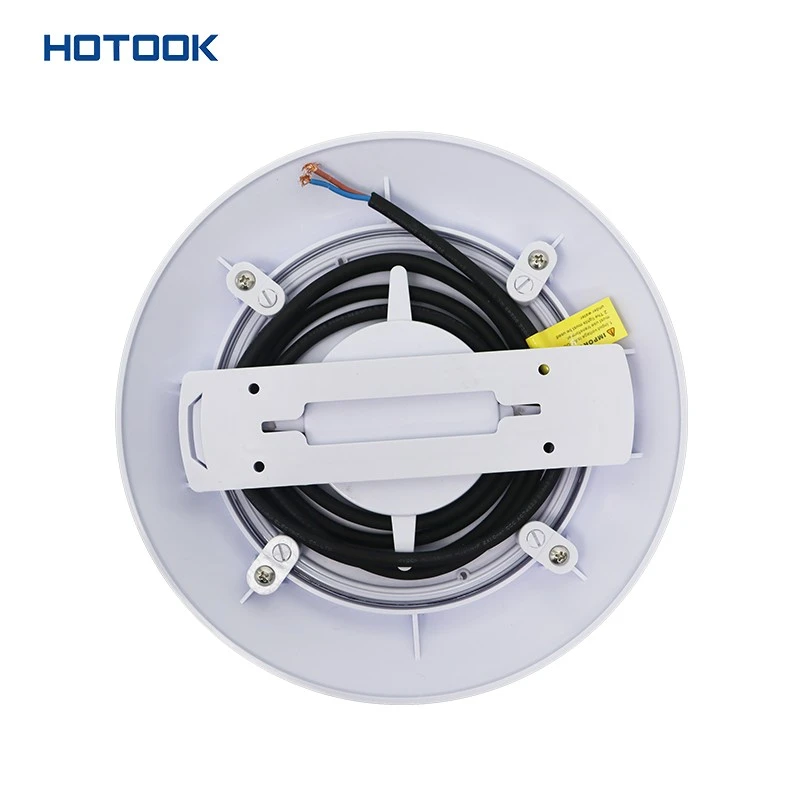

[Nicheless (Surface-Mount) Design] ：No pre buried niche is required. The light mounts directly onto the pool wall. Installation time and material costs drop significantly compared with nichebased systems.
[Ultra-Slim Profile (Ø260 mm / 10.2")] ：The low profile body sits almost flush with the wall, delivering the clean look that defines modern pool lighting.
[ 50,000 Hour Lifespan] Rated for 50,000 hours of operation roughly 10 years of typical evening use and approximately 10 times longer than conventional halogen bulbs. Maintenance intervals become minimal.
[ Broad Compatibility] ：Designed for direct wall mounting and also compatible with common Pentair and Hayward niches, covering both new installations and replacement projects.
[Multiple Control Options] ：Switch, remote, WiFi app, and DMX512 are all supported. This ranges from simple on/off residential use to full color-changing sequences for commercial pools, hotels, and villas.
[ Certifications & Authoritativeness]：Patent-protected design;IP68;CE;RoHS;FCC.These certifications address the primary concerns of international buyers regarding safety, electromagnetic compatibility, and environmental compliance.
Housing is made of durable PC combined with full resin encapsulation. High-efficiency SMD2835 LEDs deliver uniform illumination with a 120° beam angle, minimizing dark zones. Safe low-voltage operation (AC/DC 12 V or 24 V) protects users and simplifies transformer matching.
| Model | Power | Voltage | LED Type | Beam Angle | Lumen | Maferial | CRI | PF | Color |
| HTSM252P2R |
18W |
AC/DC12/24V | SMD2835 | 120° | 100Im/w | PC+resin Filled | >80 | 0.9 |
CW/WW/NW /Red/Green/Blue/RGB |
| HTSM441P2R | 24W | ||||||||
| HTSM630P2R | 35W |
Default cable length is 2 m; longer lengths (10 m / 20 m / 30 m) are available on request. Color options typically include cool white, warm white, single colors, and RGB.
[Direct wall-mount (nicheless)]:Mark the mounting position on the pool wall (ideally before final tiling if possible).
Route the cable through the prepared conduit or wall penetration.
Secure the light body with the provided screws.
Connect to a suitable 12 V / 24 V transformer.
[Pentair / Hayward niche compatibility]:The light can also be installed into existing brand niches for straightforward replacement of older fixtures.
[Safety note]: Always have low-voltage wiring performed by a qualified electrician. Confirm correct polarity and transformer rating before powering the system.
The simple surface-mount process is well-suited for featured-snippet style instructions and reduces on-site labor.
Residential concrete pools
Liner / vinyl pools
FAQ
Q: Does this light work without a niche?
A: Yes. It is designed as a nicheless, surface-mounted fixture and mounts directly on the pool wall. It is also compatible with common Pentair and Hayward niches when needed.
Q: What's the difference between the 18 W / 35 W / 42 W versions?
A: They differ mainly in LED quantity, total lumen output, and coverage area. Choose according to pool size and desired brightness: 18 W (HTSM252P2R) for smaller or accent areas, 35 W (HTSM441P2R) for medium pools, and 42 W (HTSM630P2R) for larger or higher-intensity applications.
Q: Can it be used with a standard AC 12 V transformer?
A: Yes. The lights operate on AC/DC 12 V or 24 V and work reliably with standard pool transformers of the correct voltage and adequate wattage capacity.
Q: Is it compatible with Hayward / Pentair pool systems?
A: Yes. In addition to direct wall mounting, the design supports installation into many Pentair and Hayward niches.
Q: How long is the cable, and can it be customized?
A: Default length is 2 m. Custom lengths (commonly 10 m, 20 m, or 30 m) are available to match project requirements.
Q: What makes this a good choice for modern pool lighting upgrades?
A: The combination of full resin fill (leak resistance), nicheless ultra-slim form, long 50,000-hour life, multi-control options (including WiFi and DMX512), and broad compatibility makes it a practical, low-maintenance solution that matches current design preferences for clean, contemporary pools.
